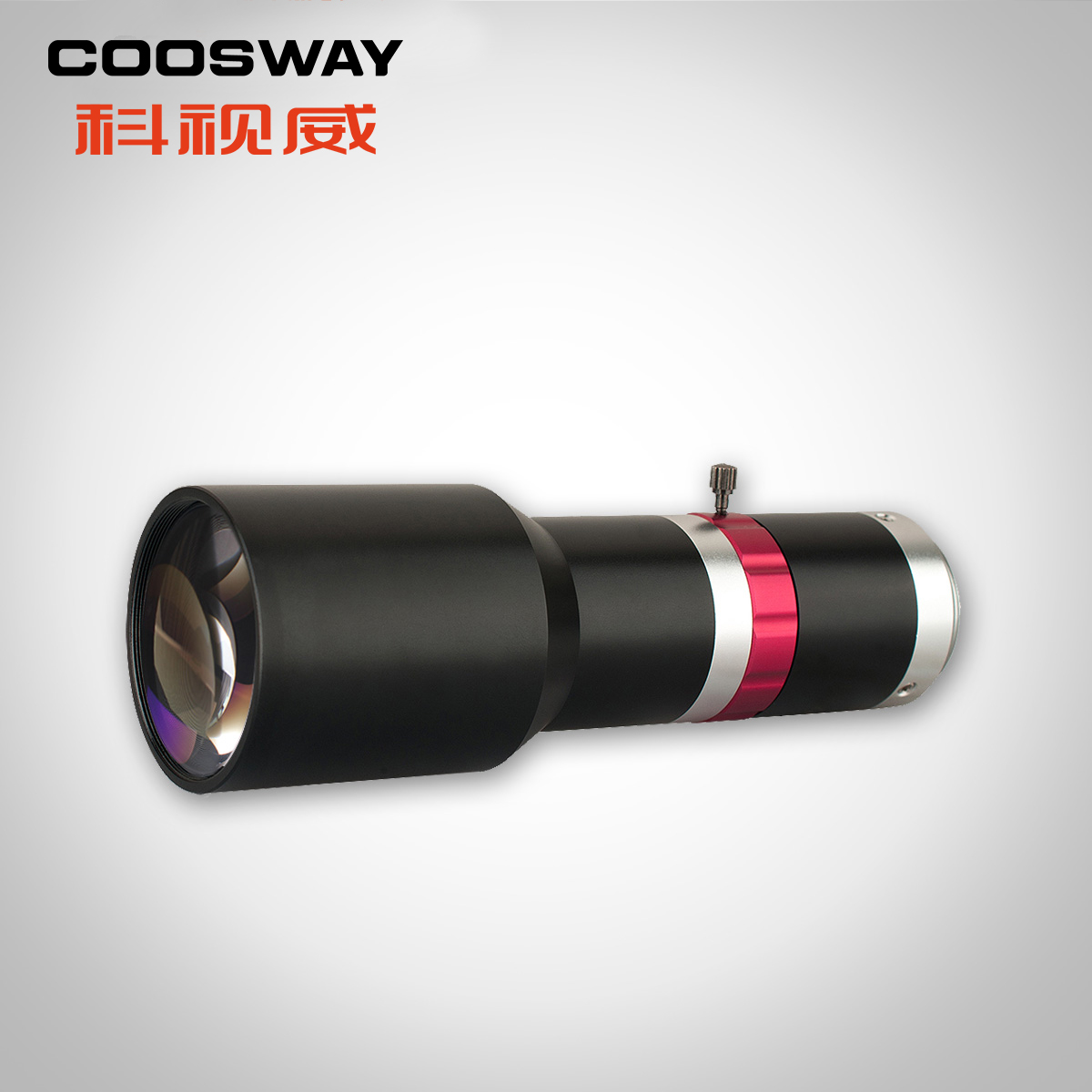

CSWH系列 双远心镜头

倍率

工作距

景深

远心度

像面畸变

分辨率

特征

长度

外径

1/3"像面

1/2"像面

1/1.8"像面

2/3"像面

           工作距65mm

CSWH08-65AT

0.8x

65±3

1.2

≤0.018°

≤0.2%

8.5um

物方远心

89.7

26

6X4.5

8X6

9X6.5

11X8.25

CSWH08-65CT

0.8x

65±3

1.2

≤0.006°

≤0.2%

8.5um

物方远心

89.7

26

6X4.5

8X6

9X6.5

11X8.25

CSWH10-65AT

1.0x

65±3

0.8

≤0.018°

≤0.2%

7.5um

物方远心

79.9

26

4.8X3.6

6.4X4.8

7.2X5.2

8.8X6.6

CSWH10-65CT

1.0x

65±3

0.8

≤0.011°

≤0.2%

7.5um

物方远心

79.9

26

4.8X3.6

6.4X4.8

7.2X5.2

8.8X6.6

CSWH15-65AT

1.5x

65±3

0.4

≤0.013°

≤0.2%

5.3um

物方远心

74.6

26

3.2X2.4

4.3X3.2

4.8X3.6

5.9X4.4

CSWH15-65CT

1.5x

65±3

0.4

≤0.015°

≤0.2%

5.3um

物方远心

74.6

26

3.2X2.4

4.3X3.2

4.8X3.6

5.9X4.4

CSWH20-65AT

2.0x

65±3

0.28

≤0.008°

≤0.2%

4.6um

物方远心

80

26

2.4X1.8

3.2X2.4

3.6X2.6

4.4X3.3

CSWH20-65CT

2.0x

65±3

0.28

≤0.005°

≤0.2%

4.6um

物方远心

80

26

2.4X1.8

3.2X2.4

3.6X2.6

4.4X3.3

            工作距110mm

CSWH03-110AT

0.3x

110±2

4

≤0.1°

≤0.1%

20.1um

物方远心

137.1

43

16X12

21.3X16

23.7X17.9

CSWH03-110CT

0.3x

110±2

4

≤0.1°

≤0.1%

20.1um

物方远心

137.1

43

16X12

21.3X16

23.7X17.9

CSWH05-110AT

0.5x

110±2

3

≤0.1°

≤0.35%

10.3um

物方远心

135.2

34

9.6X7.2

12.8X9.6

14.4X10.4

17.6X13.2

CSWH05-110AT-G

0.5x

110±2

7.5

≤0.1°

≤0.35%

10.3um

物方远心

135.2

34

9.6X7.2

12.8X9.6

14.4X10.4

17.6X13.2

CSWH05-110CT

0.5x

110±2

3

≤0.1°

≤0.35%

10.3um

物方远心

135.2

34

9.6X7.2

12.8X9.6

14.4X10.4

17.6X13.2

CSWH05-110CT-G

0.5x

110±2

7.5

≤0.1°

≤0.35%

10.3um

物方远心

135.2

34

9.6X7.2

12.8X9.6

14.4X10.4

17.6X13.2

CSWH10-110AT

1.0x

110±2

0.85

≤0.02°

≤0.3%

5.8um

物方远心

133.9

28

4.8X3.6

6.4X4.8

7.2X5.2

8.8X6.6

CSWH10-110AT-G

1.0x

110±2

3

≤0.02°

≤0.3%

5.8um

物方远心

133.9

28

4.8X3.6

6.4X4.8

7.2X5.2

8.8X6.6

CSWH10-110CT

1.0x

110±2

0.85

≤0.02°

≤0.3%

5.8um

物方远心

138.2

28

4.8X3.6

6.4X4.8

7.2X5.2

8.8X6.6

CSWH10-110CT-G

1.0x

110±2

3

≤0.02°

≤0.3%

5.8um

物方远心

138.2

28

4.8X3.6

6.4X4.8

7.2X5.2

8.8X6.6

CSWH20-110AT

2.0x

110±2

0.36

≤0.01°

≤0.52%

5um

物方远心

147.4

28

2.4X1.8

3.2X2.4

3.6X2.6

4.4X3.3

CSWH20-110AT-G

2.0x

110±2

1.5

≤0.01°

≤0.52%

5um

物方远心

147.4

28

2.4X1.8

3.2X2.4

3.6X2.6

4.4X3.3

CSWH20-110CT

2.0x

110±2

0.36

≤0.01°

≤0.52%

5um

物方远心

151.7

28

2.4X1.8

3.2X2.4

3.6X2.6

4.4X3.3

CSWH20-110CT-G

2.0x

110±2

1.5

≤0.01°

≤0.52%

5um

物方远心

151.7

28

2.4X1.8

3.2X2.4

3.6X2.6

4.4X3.3

CSWH40-110AT

4.0x

110±2

0.1

≤0.1°

≤0.1%

4.5um

物方远心

128.8

28

1.2X0.9

1.6X1.2

1.8X1.3

2.2X1.7

CSWH40-110CT

4.0x

110±2

0.1

≤0.1°

≤0.1%

4.5um

物方远心

131.1

28

1.2X0.9

1.6X1.2

1.8X1.3

2.2X1.7

            工作距130mm

CSWH08-130AT

0.8x

130±2

1.5

≤0.16°

≤0.4%

8.5um

物方远心

117.1

28

6x4.5

8x6

8.9x6.7

11x8.3

CSWH08-130AT-G

0.8x

130±2

3.8

≤0.16°

≤0.4%

8.5um

物方远心

117.1

28

6x4.5

8x6

8.9x6.7

11x8.3

CSWH08-130CT

0.8x

130±2

1.5

≤0.16°

≤0.4%

8.5um

物方远心

121.4

28

6x4.5

8x6

8.9x6.7

11x8.3

CSWH08-130CT-G

0.8x

130±2

3.8

≤0.16°

≤0.4%

8.5um

物方远心

121.4

28

6x4.5

8x6

8.9x6.7

11x8.3

            工作距145mm

CSWH07-145AT

0.7x

145±3

3.2

≤0.05°

≤0.6%

13um

物方远心

110.4

28

6.9x5.1

9.1x6.9

10.2x7.7

12.6x9.4

CSWH07-145AT-G

0.7x

145±3

4.2

≤0.05°

≤0.6%

13um

物方远心

110.4

28

6.9x5.1

9.1x6.9

10.2x7.7

12.6x9.4

CSWH07-145CT

0.7x

145±3

2.7

≤0.05°

≤0.6%

13um

物方远心

114.7

28

6.9x5.1

9.1x6.9

10.2x7.7

12.6x9.4

CSWH07-145CT-G

0.7x

145±3

4.2

≤0.05°

≤0.6%

13um

物方远心

114.7

28

6.9x5.1

9.1x6.9

10.2x7.7

12.6x9.4

            长工作距系列

CSWH05-510AT

0.5x

510±3

8

/

≤0.3%

13.8um

百万像素

163.8

26

9.6X7.2

12.8X9.6

14.4X10.4

17.6X13.2

CSWH05-510CT

0.5x

510±3

8

/

≤0.3%

13.8um

百万像素

166.3

26

9.6X7.2

12.8X9.6

14.4X10.4

17.6X13.2

CSWH10-330AT

1.0x

330±3

2.4

≤0.02°

≤0.4%

16.3um

物方远心

199.7

26

4.8X3.6

6.4X4.8

7.2X5.2

8.8X6.6

CSWH10-330CT

1.0x

330±3

2.4

≤0.02°

≤0.4%

16.3um

物方远心

197.6

26

4.8X3.6

6.4X4.8

7.2X5.2

8.8X6.6

CSWH10-410AT

1.0x

410±3

1.5

/

≤0.35%

10.4um

百万像素

178.9

26

4.8X3.6

6.4X4.8

7.2X5.2

8.8X6.6

CSWH10-410CT

1.0x

410±3

1.5

/

≤0.35%

10.4um

百万像素

182.2

26

4.8X3.6

6.4X4.8

7.2X5.2

8.8X6.6

CSWH10-510AT

1.0x

510±3

2

/

≤0.2%

13.8um

百万像素

175

26

4.8X3.6

6.4X4.8

7.2X5.2

8.8X6.6

CSWH10-510CT

1.0x

510±3

2

/

≤0.2%

13.8um

百万像素

178.5

26

4.8X3.6

6.4X4.8

7.2X5.2

8.8X6.6
